Electrical equipment manufacturers: what are the precautions for the installation of distribution box?

安裝配電箱有相應的規范需要大家遵循，接下來我們成套電氣廠家就來說說安裝配電箱的注意事項有哪些。

There are corresponding specifications for the installation of distribution box that we need to follow. Next, we will talk about the precautions for the installation of distribution box.

（1）施工用電配電系統應設置總配電箱、分配電箱、開關箱，并按照“總-分-開”順序作分級設置，并形成“三級配電”模式。

(1) The main distribution box, distribution box and switch box shall be set in the construction power distribution system, which shall be set in different levels according to the sequence of "main distribution open" and form a "three-level distribution" mode.

（2）施工用配電系統各配電箱、開關箱的安裝位置要合理?？偱潆娤湟M量靠近變壓器或外電源處，以便電源的引入。分配電箱應盡量安裝在用電設備或負荷相對集中的中 心地帶，確保三相負荷保持平衡。開關箱安裝的位置應視現場情況和工況盡量靠近其控制的用電設備。

(2) The installation position of each distribution box and switch box of construction power distribution system shall be reasonable. The main distribution box should be close to the transformer or external power supply as far as possible to facilitate the introduction of power supply. The distribution box shall be installed in the central area where the electric equipment or load is relatively concentrated as far as possible to ensure the balance of three-phase load. The installation position of the switch box shall be close to the electrical equipment controlled by it as far as possible according to the site conditions and working conditions.

（3）保證臨時用電配電系統三相負荷平衡，施工現場的動力用電和照明用電應形成兩個用電回路，動力配電箱與照明配電箱應該分別設置。

(3) To ensure the three-phase load balance of the temporary power distribution system, the power and lighting power on the construction site should form two power circuits, and the power distribution box and lighting distribution box should be set separately.


（4）施工現場所有用電設備必須有各自的專用的開關箱。

(4) All electrical equipment on the construction site must have their own special switch box.

（5）各級配電箱的箱體和內部設置必須符合規定，開關電器應標明用途，箱體應統一編號。停止使用的配電箱應切斷電源，箱門上鎖。成套電氣廠家固定式配電箱應設置圍欄，并有防雨防砸措施。

(5) The cabinet and internal setting of distribution boxes at all levels must comply with safety regulations. The purpose of switchgear shall be indicated and the cabinet shall be numbered uniformly. The power supply shall be cut off and the door shall be locked when the distribution box is out of service. The fixed distribution box of complete electrical manufacturer shall be provided with fence and rain proof and smashing proof measures.

（6）配電箱與配電柜的區別。根據GB/T20641-2006 《低壓成套開關設備和控制設備空殼體的一般要求》

(6) The difference between distribution box and distribution cabinet. According to GB / t20641-2006 General requirements for empty shells of low voltage switchgear and controlgear assemblies

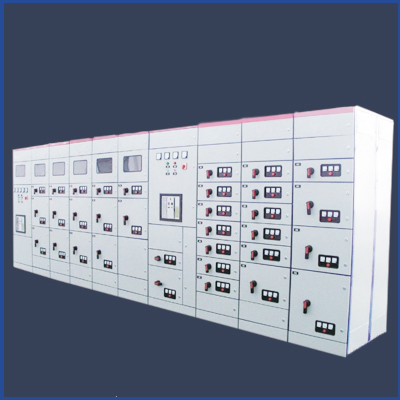

配電箱一般是家庭用的，而配電柜則多用在集中供電中，比如說工業用電和建筑用電等，配電箱和配電柜都屬于成套設備，配電箱屬于低壓成套設備，配電柜有高壓有低壓。

The distribution box is generally used for household use, while the distribution cabinet is mostly used in centralized power supply, such as industrial power and construction power. The distribution box and the distribution cabinet belong to complete sets of equipment, the distribution box belongs to low-voltage complete sets of equipment, and the distribution cabinet has high voltage and low voltage.
